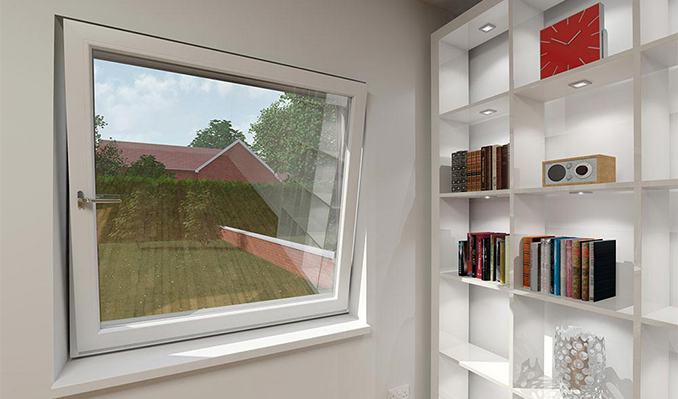

Fixed / Left Hinged Opener / Fixed Tilt & Turn Window

(TBT 10)

(Window viewed from the outside)


WIDTH   –  Min: 950mm. Max: 3000mm
HEIGHT – Min: 550mm. Max: 1500mm

Tilt & Turn Size (Middle Section)

WIDTH   – Min: 550mm.   Max: 1500mm

For sizes outside of the minimum and maximum dimensions stated above, please contact us.



Our UPVC tilt and turn windows are available in the colours below.
Please contact us, if you are looking for a colour that is not shown below.


Chartwell Green

Chartwell Green & White

Anthracite Grey

Anthracite Grey & White


Rosewood & White

Black Ash

Black Ash & White


Oak & White

Slate Grey

Slate Grey & White

Frame Options

Our tilt and turn windows are offered with two different styles of frames & beading.



Glazing Options

Our tilt and turn windows are available with a selection of glazing options.

When selecting our tilt and turn windows, you can pick from a collection of energy efficient glazing options, including double- or triple-glazed, laminated, toughened and acoustic glasses.

Browse Our Glazing Options

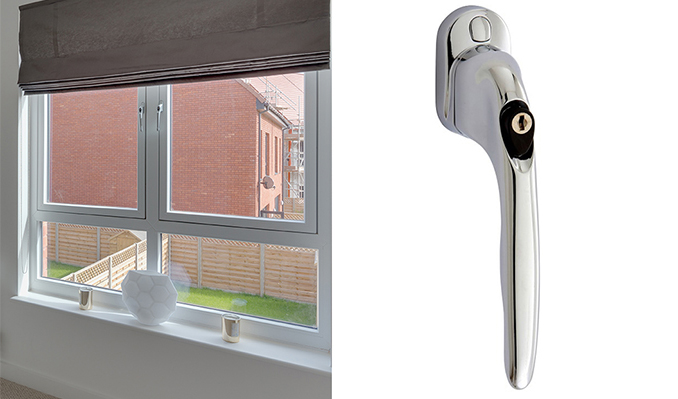

Window handles

Specifically designed for tilt and turn windows, tilt and turn handles can accommodate both tilt first and turn first applications. We offer this product in a length of 40mm.

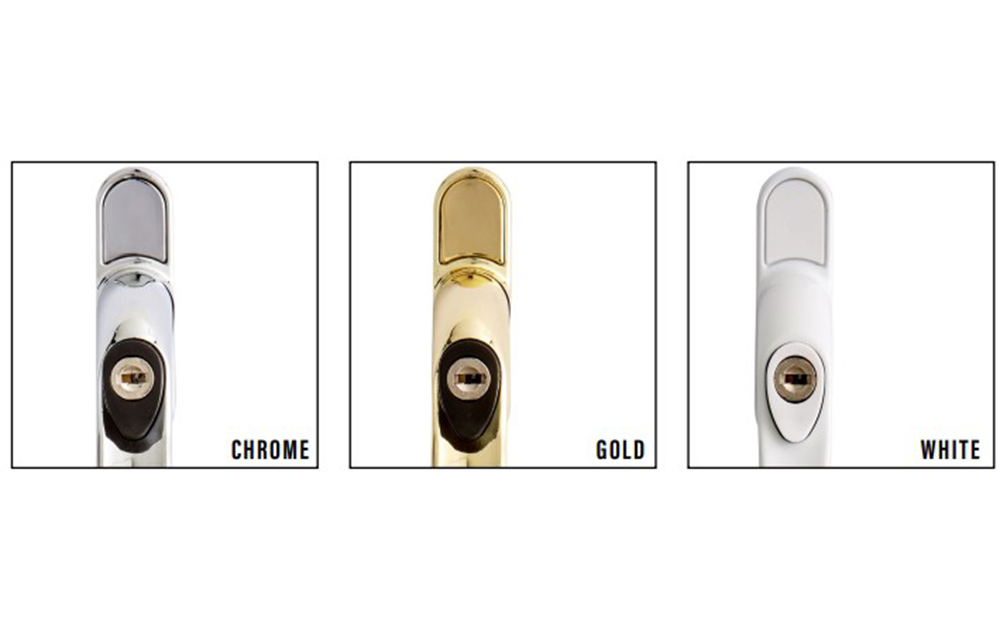

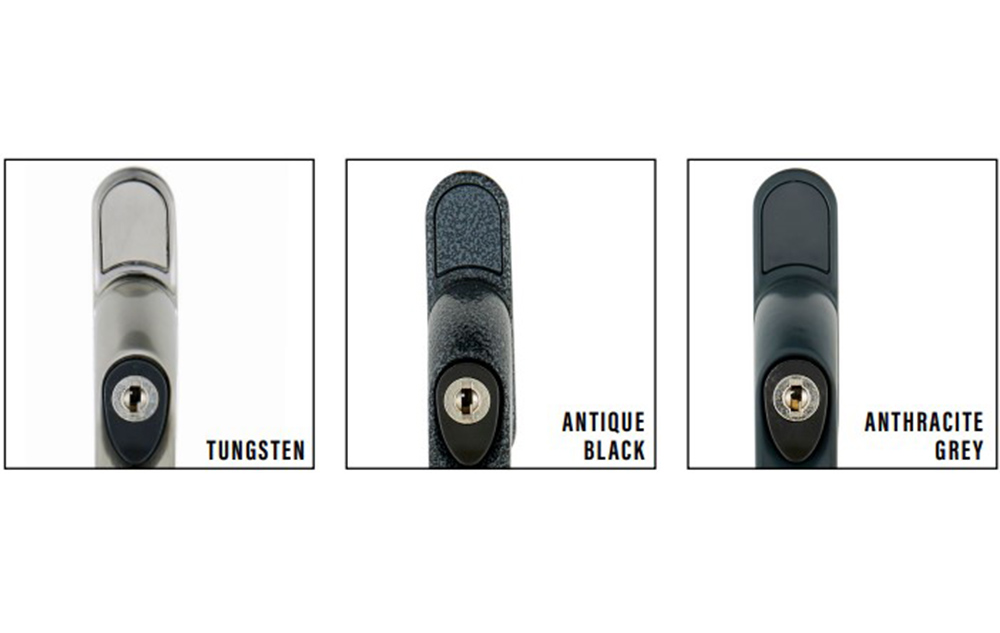

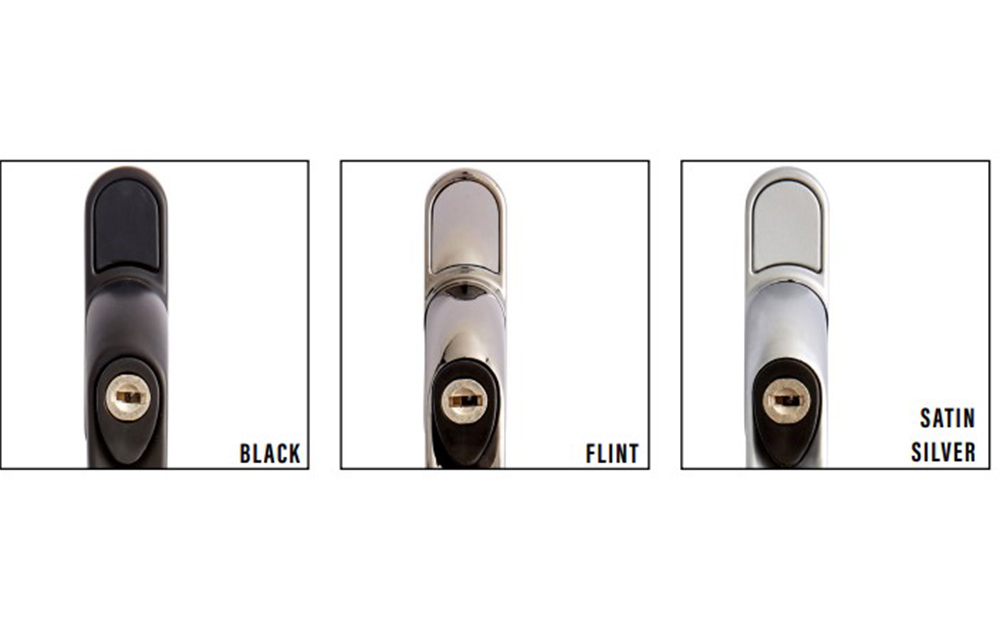

Our tilt & turn window handles are available in a wide range of colours.

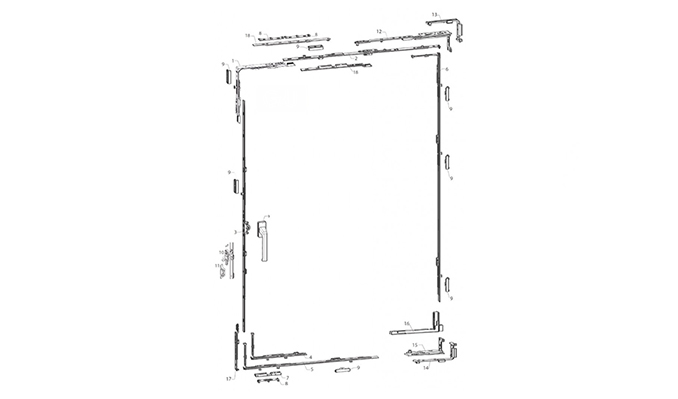

Tilt & Turn Gearing

The tilt and turn gearing system fully hides the pivot rests and stay bearings, providing invisible hardware elements. It is suitable for every sash weight up to 130kg. It provides a sash rebate width of 280-1400mm, and a rebate height of 280-2800mm.

This system provides a wide opening angle of up to 100°.

Trickle vents

Our PVCu windows are offered with a variety of trickle vent options.

Find out more

Window cills

Our window cills are manufactured from high quality multi-chambered profiles, in a selection of colours and sizes, and with a range of finishing trims in foam and rigid options.

Find our more about our window cills

Finishing Options

When selecting our PVCu tilt and turn windows, a variety of finishing options are available.

You can complete your windows with trims, quadrats, angles and internal cills, just to name a few.

Find out more about our finishing options
